Zebra barcode printer Dealers in Delhi


Industry-leading performance at a budget price

We at Dash International deals in barcode scanners which are obviously most mandatory device meant in any of the business operations. They are widely demanded in most of the industries today, due to their quick accuracy in the pieces of information. Barcode scanning delivers a lot of time and thus, reduces labor operations cost as well as revenue losses efficiently.

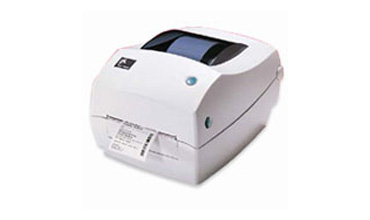

The most notable thing is that it is easy to understand and learned to utilize. Implementing the barcode scanners into the business domains are usually a breeze. Therefore, we are well reckoned as the best Zebra barcode printer Dealers in Delhi where the Zebra TLP 2844 holds a sturdy construction along with a double-walled ABS casing. These scanners are available in very compact size which can be easily placed on the table. Its mandatory attribute is its performance which is in inventory control. It can greatly be reduced with the use of a point of sale program and an effective barcode scanning method as well. Barcode Scanner is a smart investment in medical laboratories, e-commerce postage, transportation and logistics.

.
Benefits
Download Printer Driver

Product Brochure (PDF, 777 KB)

Download Printer Manual
Find Supplies for Europe, Middle East and Africa
Find Supplies for the Americas and Asia
Standard Features
Print methods: Direct thermal/thermal transfer (TLP)

Construction: ABS double-walled casing

OpenACCESS™ design
Head-up sensor
Windows® drivers (95, 98, Me, NT4.0, NT2000, XP)
Windows printer utilities
Zebra Printer Management
Specification
Resolution
203 dpi (8 dots/mm)
Memory
Standard: 256 KB SRAM; 512 KB Flash
Optional: 512 KB SRAM; 1 MB Flash
Print width
4.09" (104 mm) maximum
Print length
11" (279 mm) with standard memory
22" (584 mm) with expanded memory
Print speed
4" (102 mm)/sec
Media sensors
Reflective
Transmissive
MEDIA CHARACTERISTICS
Maximum label and liner width
4.25" (108 mm)
2.8" (71 mm) with Media Adapter Guides
Minimum label and liner width
1.00" (25.4 mm)
0.585" (15 mm) with Media Adapter Guides
Maximum label and liner length
11" (279 mm) (with standard memory)
Maximum label and liner length (optional)
22" (558 mm)
Maximum roll diameter
5" (127 mm)
Core diameter
1.0" (25.4 mm) and 1.5" (38 mm)
Media thickness
0.003" (.08 mm) to 0.007" (0.18 mm)
Media types
(black-mark optional), black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notch, notch sensing, notched, perforated, receipt, roll-fed, tag, tag stock
RIBBON CHARACTERISTICS
Outside diameter
1.34" (34 mm)
Standard length
244' (74 m)
Ratio
1:1 media roll to ribbon ratios
Ribbon width
Recommended to be at least as wide as media
1.33" (33.8 mm) to 4.30" (110 mm)
Ribbon setup
Ribbon wound ink side out
ID Core
0.5" (12.7 mm)
OPERATING CHARACTERISTICS
Operating temperature
TT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer
DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal
Storage temperatures
-40° F (-40° C) to 140° F (60° C)
Operating humidity
10-90% non-condensing R.H.
Storage humidity
5-95% non-condensing R.H.
Electrical
Autoranging external power supply with C7 type connector
Output: 20 VDC, 2.5 A
Input: 100-200 VAC, 50-60 Hz


Agency approvals
UL
FCC
VCCI/PSE
C-TICK
CSA
NOM
CE
CCC/SRRC
GOST-R

PHYSICAL CHARACTERISTICS
Width
7.9" (201 mm)
Height
6.8" (173 mm)
Depth
9.75" (248 mm)

Weight
3.2 lbs (1.5 kg)
Shipping weight
5.8 lbs (2.6 kg)
RELATED PRODUCTS
Options
Cutter
Real time clock
Dispenser with label taken sensor
Asian Font Set
Communication and Interface Capabilities
Serial RS-232 (DB9)
Parallel (Centronics)
USB
PROGRAMMING LANGUAGES
Core programming languages
EPL2
BAR CODES/SYMBOLOGIES
Linear
Code 39
Code 128 with subsets A/B/C
Code 93
Codabar
Interleaved 2-of-5
UPC-E
UPC-A
UPC-A and UPC-E with 2 or 5 digit extensions
EAN-13
EAN-8
EAN-8 and EAN-13 with 2 or 5 digit extensions
Postnet
Plessey
German Post Code
RSS-14
MSI-3
2-dimensional
MaxiCode
MacroPDF417
QR Code (requires Asian version printer)
Data Matrix
Fonts and Graphics
Standard Fonts: 5 bitmapped, expandable 8x
Soft font storage in Flash memory
DOS Code Pages Supported: 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
Windows Code Pages Supported: 1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257
