Cognex’s - vision system Scanner


Awesome Image

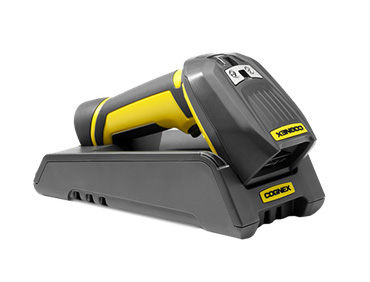

DATAMAN 8050 SERIES BARCODE READERS

High speed 1D/2D handheld barcode reader
DataMan® 8050 barcode readers bring Cognex’s patented algorithms to a new, lightweight industrial handheld platform. DataMan 8050 reads 1D and 2D barcodes with incredible speed every time even if damaged, smudged, scuffed or poorly marked.

Modular design easily adapts to meet your needs
Field interchangeable communication modules allow one reader to be configured to meet specific communication needs to support corded RS-232, USB, and Ethernet options, as well as cordless options including Bluetooth and Wi-Fi.

Rugged industrial design
The DataMan 8050 barcode reader is constructed to handle the harshest environments. Other industrial features include: lanyard hook for easy retractor mounting, bright centralized aimer for clear targeting, loud beeper, and indicator lights.

High speed 1D/2D reading performance
▪ Cognex’s patented algorithms, 1DMax® with Hotbars,® enables the DataMan 8050 barcode reader to decode the most challenging 1D barcodes quickly and easily, at more angles and in any orientation.
▪ Class-leading 2D algorithms read many 2D symbologies even when damaged, obstructed or with perspective distortion. Supported 2D symbologies include: Data Matrix, QR, PDF417, MaxiCode, and Aztec.
▪ Best-in-class reading performance means 8050 reads damaged, plastic wrapped, direct inkjet, low contrast, poorly printed, scraped, obstructed, uneven, torn, small, and smudged barcodes.

Awesome Image

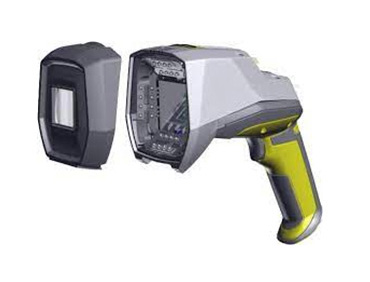

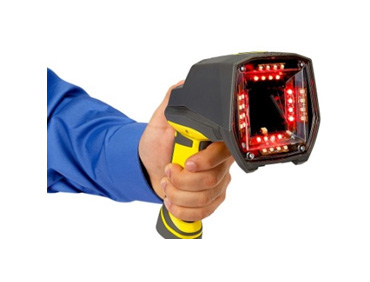

DATAMAN 8072 SERIES VERIFIER

High-performance direct part mark (DPM) code quality verifier Barcode verification is the process of grading the quality of barcodes. Barcode verifiers capture images and generate reports to demonstrate compliance to parameters within industry standardization guidelines.
The DataMan® 8072 series verifier is packed with powerful lighting options, robust grading algorithms, a high-speed processing engine, and a high-resolution camera to capture and grade the most difficult DPM codes. Combined with simple DataMan Setup Tool software, DataMan 8072 verifiers deliver detailed, repeatable results.
Multiple options for verifying codes on every surface As the only DPM verifier on the market with 30-, 45-, and 90-degree lighting options, the DataMan 8072V can easily illuminate codes on textured, curved, and even highly reflective surfaces. This provides the best chance of reliably capturing and grading code images to verify compliance with the International Organization for Standardization AIM DPM Quality Guideline (ISO/IEC TR 29158).
Compared to other industry verifiers, DataMan 8072V offers greater versatility and speed to verify codes.
▪ 27 x 20 mm field-of-view (FOV)
▪ 6.0 mil minimum x-dimension
▪ High-speed processing engine
▪ 1.2-megapixel sensor


Awesome Image

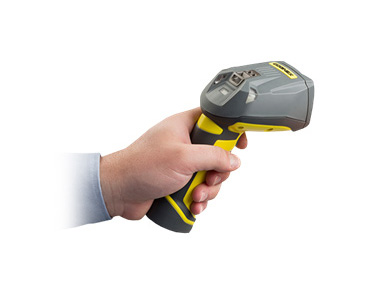

DM8600 DPM Scanner


DataMan 8600 readers are equipped the with most advanced barcode reading algorithms and are capable of reading the most challenging DPM codes on the widest variety of surfaces, and using the widest range of marking methods. Patented lighting and liquid lens technology makes the DataMan 8600 the most powerful and flexible handheld barcode reader available. Ethernet communication enables direct communication between DataMan 8600 readers and industrial PLCs and factory networks.
High Speed Versatility with Ultimate Reading Performance
• Best-in-class patented 2DMax+ algorithms read low contrast, scraped, damaged, obstructed and small DPM codes. Supported 2-D symbologies include: DataMatrix, QR, PDF417, MaxiCode and Aztec.
• Cognex’s patented 1DMax+ with Hotbars algorithms enable the DataMan 8600 barcode reader to decode the most challenging 1-D barcodes quickly and easily, at more angles and in any orientation.
• The DataMan 8600 readers incorporate Cognex’s improved patented UltraLight® technology for superior image formation on any mark type and surface. UltraLight illumination provides dark field, bright field and diffuse lighting all in one electronically controlled light.


Awesome Image

DATAMAN 8072 SERIES VERIFIER

High-performance direct part mark (DPM) code quality verifier Barcode verification is the process of grading the quality of barcodes. Barcode verifiers capture images and generate reports to demonstrate compliance to parameters within industry standardization guidelines.
The DataMan® 8072 series verifier is packed with powerful lighting options, robust grading algorithms, a high-speed processing engine, and a high-resolution camera to capture and grade the most difficult DPM codes. Combined with simple DataMan Setup Tool software, DataMan 8072 verifiers deliver detailed, repeatable results.
Multiple options for verifying codes on every surface
As the only DPM verifier on the market with 30-, 45-, and 90-degree lighting options, the DataMan 8072V can easily illuminate codes on textured, curved, and even highly reflective surfaces. This provides the best chance of reliably capturing and grading code images to verify compliance with the International Organization for Standardization AIM DPM Quality Guideline (ISO/IEC TR 29158).
Compared to other industry verifiers, DataMan 8072V offers greater versatility and speed to verify codes.
▪ 27 x 20 mm field-of-view (FOV)
▪ 6.0 mil minimum x-dimension
▪ High-speed processing engine
▪ 1.2-megapixel sensor


Awesome Image

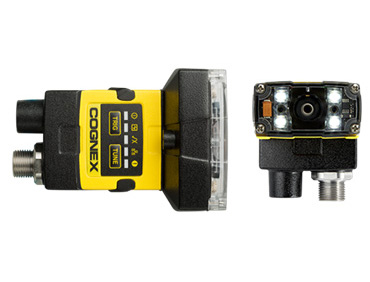

IN-SIGHT 2000 SERIES VISION SENSORS

In-Sight® 2000 series vision sensors combine the power of an In-Sight vision system with the simplicity and affordability of a vision sensor. Ideal for solving error-proofing applications, these vision sensors set new standards for value, ease of use and flexibility thanks to a powerful combination of proven In-Sight vision tools, simple setup, and a modular design featuring field-changeable lighting and optics.
Together with the In-Sight Explorer™ EasyBuilder® interface, which provides fast, step-by-step application setup, these vision sensors allow even novice users to achieve extremely reliable inspection performance in nearly any production environment. In-Sight 2000 series vision sensors can also be configured for in-line and right-angle installation and are available in two form factors. This modular body design provides maximum flexibility to mount in tight spaces, allows for customized wiring and optical paths, and minimizes the need to design new mechanical fixtures.

Benefits at-a-glance ▪▪ Affordable vision sensor powered by In-Sight Explorer software and EasyBuilder—the same interface used for all In-Sight vision systems
▪▪ Simple for both new and existing users to meet their automated inspection challenges
▪▪ Monochrome and color sensor models solve presence/absence applications, including color verification
▪▪ Proven, reliable Cognex In-Sight vision tools
▪▪ Compact, modular design with field-changeable, integrated optics and lighting
▪▪ Autofocus lens eliminates the need to manually refocus or adjust the mounting height of the sensor during line changeovers
▪▪ Fully compatible with Cognex VisionView® PC software and VisionView 900 HMI touchscreen panel

Choice of lighting and optics for different application requirements In-Sight 2000 series models include an integrated lens and LED illumination that eliminates the need for costly external lighting. Lenses and lighting are field-interchangeable to adjust to different application requirements. The In-Sight 2000 Mini has a smaller form factor making it ideal for mounting in tight spaces

Awesome Image

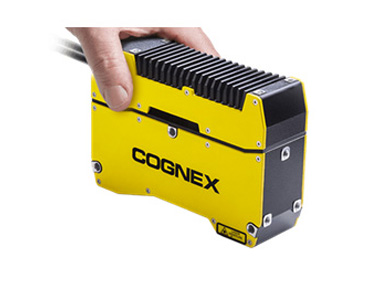

IN-SIGHT 3D-L4000 3D VISION SYSTEM

All-in-one solution solves 3D inspection applications as easily as 2D vision
The In-Sight® 3D-L4000 is a breakthrough in three-dimensional (3D) vision technology. This unique vision system combines 3D laser displacement technology with a smart camera allowing factory engineers to quickly, accurately, and cost effectively solve a wide variety of inspections on an automated production line. The patented speckle-free blue laser optics, an industry first, acquires high quality 3D images and on-board high-performance processing powers a comprehensive set of true 3D vision tools, without the need for external processing. 3D vision tools are set up as easily as 2D vision tools thanks to the familiar and robust In-Sight spreadsheet environment.

Features
 High performance 2K resolution 3D smart camera
 Broad suite of true 3D vision tools
 Speckle-free blue laser optics
 In-Sight spreadsheet-based setup

Better image formation in real-world settings
The 3D-L4000 series’ patented, speckle-free blue laser optical system enables the vision system to capture higher quality images than traditional laser displacement sensors. This type of laser optics minimizes speckle and glare, common problems for 3D laser systems.
